PDA-184, PDA184, RF Distribution, Communicatuions Software, Frederick, MD
Products

ABLE184

ABLE184 is an Android based application that provides reliable data communication through data compression, packet communications, and adaptive error-correction processing of user data to allow high-throughput reliable data transfer over noisy RF communication channels.  The application is based on a link-layer protocol specified in the MIL-STD-188-184A, "Interoperability Standard For The Data Control Waveform."



ABLE184-S is an enhanced version of ABLE184 that provides additional transmission privacy and protection using widely used ciphers Advanced Encryption System (AES) and Blowfish encryption.



Both ABLE184 and ABLE184-S have been thoroughly tested and available for commercial sales.

email: able184@ablecommtech.com for more information/to place an order.

Warfighter Edition

Cybersecurity solutions for the modern warfighter. Secure communications over multi-band, multi-mission radios.





ABLE184 is a modern data controller that operates on small size, weight, and power requirements offered by various Android smartphones and tablets. Practically any network capable device with USB interface can be used and connect with many new-generation military multi-band radios.



The ABLE184 app is backward compatible with earlier generation Windows programs such as DISA's PDA-184 and Viasat's VDC.



ABLE184 has been tested with PRC-148 JEM, PRC-148B MBITR2, PRC-117G, and PRC-152A radios. Works with those radios in LOS, SINGCARS, SATCOM, DAMA, and Integrated Waveform (IW) modes.



WiFi Edition

Cybersecurity Solutions. Be cyber-secure over public, private, and secure networks.



ABLE184 WiFi Edition offers end-to-end data encryption using a choice of Blowfish and AES strong ciphers. Your data remains secure throughout the entire network transmission path which includes many devices and a similar number of opportunities for intercept.



Unlike most common types of network security processes such as SSL and TLS, ABLE184 does not require client/server configurations with third and fourth party hardware and encryption keys with certificates. Therefore, ABLE184 mitigates intercept and cipher cracking from imposter hardware and software with access to SSL/TLS connections. ABLLE184 uses robust communication protocol and error correction processes that are more capable than commercial standard UDP and TCP/IP. Missing data or data with uncorrectable errors will be automatically resent.



Features for Both Editions

UHF Satellite Simulator

We can offer two channel or four channel satellite simulator designs for testing with multi-band, multi-mission radios and our RF distribution assemblies. We can also custom configure our satellite simulators for use with MUOS radios.

RF Distribution Systems: Custom Built Manufacturing

We can tailor these RF Distribution Systems to meet your specific needs and requirements.  Each system is made to order and custom built.  We will work with you every step of the way from the initial conception, design and manufacturing, and system set up.  We also offer full training services for our custom made devices and more.

RF Distribution System

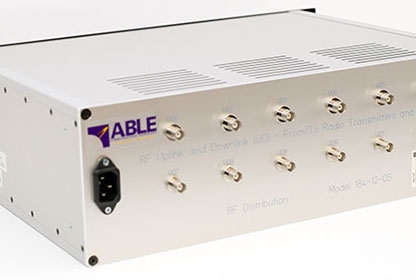

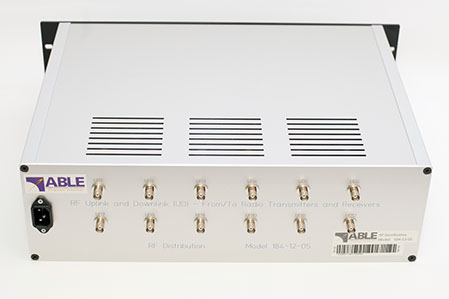

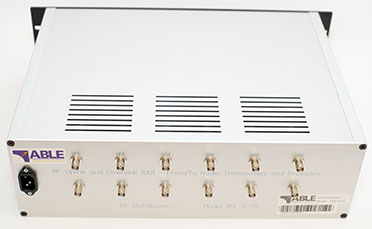

Model: 184-12-05

RF Distribution System

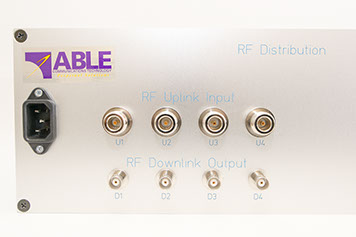

Model: 1828-05

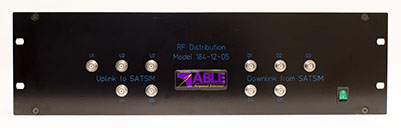

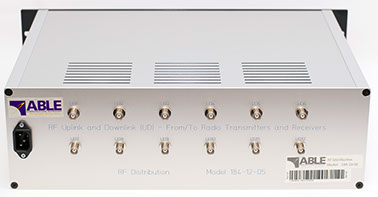

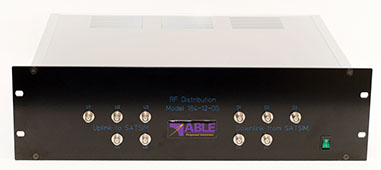

The 184-12-05 is designed for testing radios in conjunction with satellite simulators or LOS mode of operation.  This system can enable up to 12 half duplex radios or six (6) full duplex or combinations of each to interface with up to four (5) UHF satellite simulator channels. The design eliminates transmit to receive noise interference when using radios from different vendors.

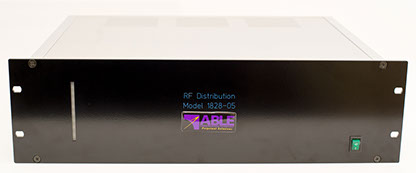

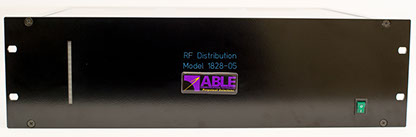

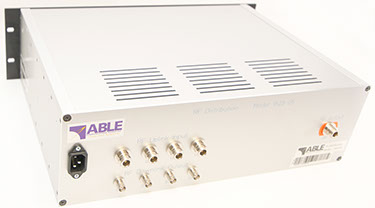

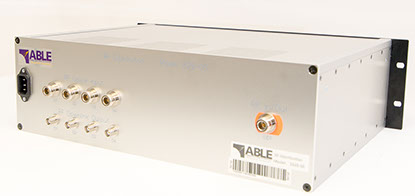

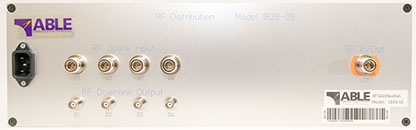

 The 1828-05 is specifically designed to interface with four (4) channel radios and provide a single RF uplink and downlink interface for four (4) channel full duplex radios and provide a single antenna interface.

Contact Us today for more information on these custom built RF Distribution Systems.
